PTS645SM70-2LFS
Manufacturer:
C&K Components
Mfr.Part #:
PTS645SM70-2LFS
Datasheet:
Description:

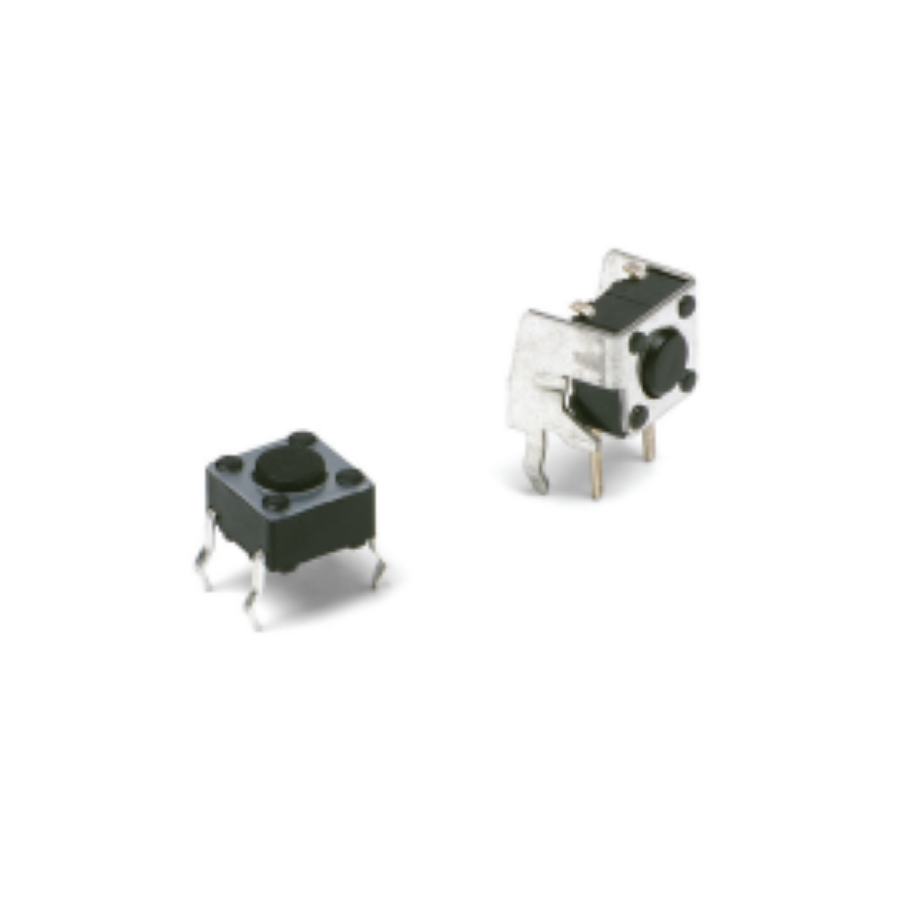

Tactile Switches Through Hole Off-Mom 1.57 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 6 mm |
| Termination | PC Pin |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -20 °C |
| Packaging | Bulk |
| Depth | 7.9 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Bronze |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Straight |
| Color | Black |
| Throw Configuration | SPST |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Operating Force | 1.57 N |
| Actuator Material | Nylon, Polyamide |
| Mechanical Life | 100 kcycles |
| Actuator Type | Round |
| Mounting Direction | Straight |
Stock: 3
Distributors
pcbx
pcbxUnit Price$0.09821
Ext.Price$0.09821
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.09821 | $0.09821 |
| 10 | $0.08597 | $0.85970 |
| 50 | $0.07526 | $3.76300 |
| 100 | $0.06441 | $6.44100 |
